r.sunhours
Calculates solar elevation, solar azimuth, and sun hours.
Solar elevation: the angle between the direction of the geometric center of the sun's apparent disk and the (idealized) horizon. Solar azimuth: the angle from due north in clockwise direction.
r.sunhours [-ts] [elevation=name] [azimuth=name] [sunhour=name] year=integer [month=integer] day=integer [hour=integer] [minute=integer] [second=integer] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]
Example:
r.sunhours year=integer day=integer
grass.script.run_command("r.sunhours", elevation=None, azimuth=None, sunhour=None, year, month=None, day, hour=12, minute=0, second=0, flags=None, overwrite=False, verbose=False, quiet=False, superquiet=False)
Example:
gs.run_command("r.sunhours", year=integer, day=integer)
Parameters
elevation=name
Output raster map with solar elevation angle
Name for output raster map
azimuth=name
Output raster map with solar azimuth angle
Name for output raster map
sunhour=name
Output raster map with sunshine hours
Sunshine hours require SOLPOS use and Greenwich standard time
year=integer [required]
Year
Allowed values: 1950-2050
month=integer
Month
If not given, day is interpreted as day of the year
Allowed values: 1-12
day=integer [required]
Day
Allowed values: 1-366
hour=integer
Hour
Allowed values: 0-24
Default: 12
minute=integer
Minutes
Allowed values: 0-60
Default: 0
second=integer
Seconds
Allowed values: 0-60
Default: 0
-t
Time is local sidereal time, not Greenwich standard time
-s
Do not use SOLPOS algorithm of NREL
--overwrite
Allow output files to overwrite existing files
--help
Print usage summary
--verbose
Verbose module output
--quiet
Quiet module output
--qq
Very quiet module output
--ui
Force launching GUI dialog
elevation : str, optional
Output raster map with solar elevation angle
Name for output raster map
Used as: output, raster, name
azimuth : str, optional
Output raster map with solar azimuth angle
Name for output raster map
Used as: output, raster, name
sunhour : str, optional
Output raster map with sunshine hours
Sunshine hours require SOLPOS use and Greenwich standard time
Used as: output, raster, name
year : int, required
Year
Allowed values: 1950-2050
month : int, optional
Month
If not given, day is interpreted as day of the year
Allowed values: 1-12
day : int, required
Day
Allowed values: 1-366
hour : int, optional
Hour
Allowed values: 0-24
Default: 12
minute : int, optional
Minutes
Allowed values: 0-60
Default: 0
second : int, optional
Seconds
Allowed values: 0-60
Default: 0
flags : str, optional
Allowed values: t, s
t
Time is local sidereal time, not Greenwich standard time
s
Do not use SOLPOS algorithm of NREL
overwrite: bool, optional
Allow output files to overwrite existing files
Default: False
verbose: bool, optional
Verbose module output
Default: False
quiet: bool, optional
Quiet module output
Default: False
superquiet: bool, optional
Very quiet module output
Default: False
DESCRIPTION
r.sunhours calculates sun elevation and sun azimuth angles for the given time of day and each grid cell in the current region. Additionally, the photoperiod (sunshine hours on flat terrain) can be calculated.
Sun elevation, height, height angle, or solar altitude angle is the angle in degrees between the horizon and a line that points from the site towards the centre of the sun.
The sun azimuth angle is here defined as the azimuth angle in degrees of the sun from due north in a clockwise direction.
The time used here is defined such that 12:00 (high noon) is the time when the sun has reached its highest point in the sky at the current site, unless the -t flag is used in which case time is interpreted as Greenwich standard time.
If a sunhour output map is specified, the module calculates sunshine hours for the given day. This option requires both Greenwhich standard time and the use of the SOLPOS algorithm by NREL.
NOTES
To consider also cast shadow effects of the terrain, r.sun has to be used.
EXAMPLES
Calculating a sun elevation angle map
Calculate the sun elevation angle map for 2010-10-11 at 14:00h solar time:
# set computational region to North Carolina state extent
g.region n=318500 s=-16000 w=124000 e=963000 res=500 -p
r.sunhours elevation=sun_elev year=2010 month=10 day=11 hour=14 minute=00
# visualize
d.mon wx0
d.rast sun_elev
d.vect nc_state type=boundary
d.legend sun_elev -s

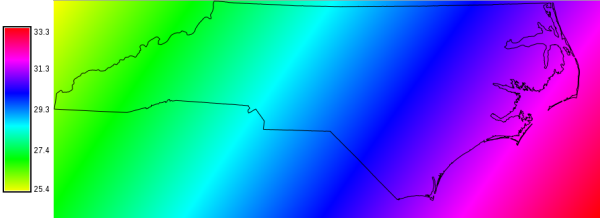

Sun angle map (in degree) of North Carolina for the 2010-10-11 at
14:00h solar time
Calculate map of photoperiod (insolation time)
Calculate photoperiod of day-of-year 001 (1st January) of 2012 for the current computational region, ignoring cast shadow effects of the terrain:
g.region -p
r.sunhours sunhour=photoperiod_doy_001 year=2012 day=1
Acknowledgements
Acknowledgements: National Renewable Energy Laboratory for their SOLPOS 2.0 sun position algorithm.
SEE ALSO
AUTHOR
Markus Metz
