r.resamp.interp

Resamples raster map to a finer grid using interpolation.

r.resamp.interp input=name output=name [method=string] [nprocs=integer] [memory=memory in MB] [--overwrite] [--verbose] [--quiet] [--qq] [--ui]

Example:

r.resamp.interp input=name output=name

grass.script.run_command("r.resamp.interp", input, output, method="bilinear", nprocs=1, memory=300, overwrite=False, verbose=False, quiet=False, superquiet=False)

Example:

gs.run_command("r.resamp.interp", input="name", output="name")

Parameters

input=name [required]
    Name of input raster map
output=name [required]
    Name for output raster map
method=string
    Sampling interpolation method
    Allowed values: nearest, bilinear, bicubic, lanczos
    Default: bilinear
    nearest: Nearest-neighbor interpolation
    bilinear: Bilinear interpolation
    bicubic: Bicubic interpolation
nprocs=integer
    Number of threads for parallel computing
    Default: 1
memory=memory in MB
    Maximum memory to be used (in MB)
    Cache size for raster rows
    Default: 300
--overwrite
    Allow output files to overwrite existing files
--help
    Print usage summary
--verbose
    Verbose module output
--quiet
    Quiet module output
--qq
    Very quiet module output
--ui
    Force launching GUI dialog

input : str, required
    Name of input raster map
    Used as: input, raster, name
output : str, required
    Name for output raster map
    Used as: output, raster, name
method : str, optional
    Sampling interpolation method
    Allowed values: nearest, bilinear, bicubic, lanczos
    nearest: Nearest-neighbor interpolation
    bilinear: Bilinear interpolation
    bicubic: Bicubic interpolation
    Default: bilinear
nprocs : int, optional
    Number of threads for parallel computing
    Default: 1
memory : int, optional
    Maximum memory to be used (in MB)
    Cache size for raster rows
    Used as: memory in MB
    Default: 300
overwrite: bool, optional
    Allow output files to overwrite existing files
    Default: False
verbose: bool, optional
    Verbose module output
    Default: False
quiet: bool, optional
    Quiet module output
    Default: False
superquiet: bool, optional
    Very quiet module output
    Default: False

DESCRIPTION

r.resamp.interp resamples an input raster map by interpolating between the neighboring cells via a selectable resampling algorithm. All cells present in the neighborhood of the input raster cell must be non-null to generate a non-null cell in the output raster map. A choice of four interpolation methods is available; each uses the weighted values of a different number of adjacent cells in the input map to determine the value of each cell in the output map as follows:

  • nearest neighbour (1 cell)
  • bilinear (4 cells)
  • bicubic (16 cells)
  • lanczos (25 cells)

This module is intended for reinterpolation of continuous data to a different resolution rather than for interpolation from scattered data (use the v.surf.* modules for that purpose).

NOTES

Resampling modules (r.resample, r.resamp.stats, r.resamp.interp, r.resamp.rst) resample the map to match the current region settings.

Note that for bilinear, bicubic and lanczos interpolation, cells of the output raster that cannot be bounded by the appropriate number of input cell centers are set to NULL (NULL propagation). This could occur due to the input cells being outside the current region, being NULL or masked.

For longitude-latitude coordinate reference systems, the interpolation algorithm is based on degree fractions, not on the absolute distances between cell centers. Any attempt to implement the latter would violate the integrity of the interpolation method.

PERFORMANCE

By specifying the number of parallel processes with nprocs option, r.resamp.interp can run significantly faster, see benchmarks below.

benchmark for number of cells
Figure: Benchmark shows execution time for different number of cells. See benchmark scripts in source code.

To reduce the memory requirements to minimum, set option memory to zero. To take advantage of the parallelization, GRASS GIS needs to compiled with OpenMP enabled.

EXAMPLE

Resample elevation raster map to a higher resolution (from 500m to 250m; North Carolina sample dataset):

g.region raster=elev_state_500m -p
g.region res=250 -ap
r.resamp.interp input=elev_state_500m output=elev_state_250m \
                method=bilinear

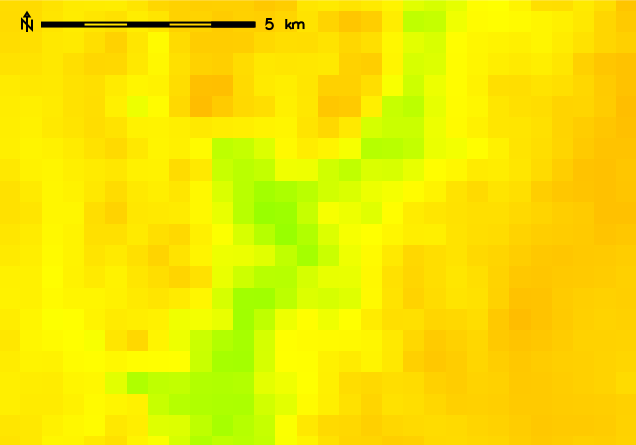

Original 500m resolution elevation
map
Original 500m resolution elevation map

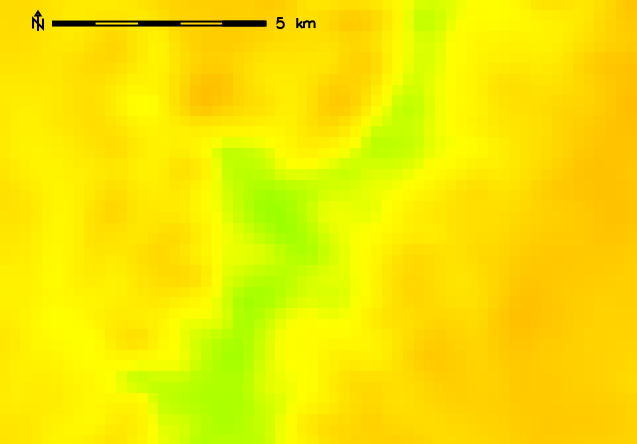

Resampled 250m resolution elevation
map
Resampled (bilinear) 250m resolution elevation map

SEE ALSO

g.region, r.resample, r.resamp.filter, r.resamp.rst, r.resamp.stats

Overview: Interpolation and Resampling in GRASS GIS

AUTHOR

Glynn Clements

SOURCE CODE

Available at: r.resamp.interp source code (history)
Latest change: Thursday Feb 13 11:55:34 2025 in commit ffc0b8c
